Friday, 18 January 2013 09:38

How create and configure deduplication in windows server 2012

Rate this item
(0 votes)


One of the great features of windows 2012 is volume deduplication. It used for file servers mostly and it is not permitted for c:\ drive.

Install deduplication from Server Manager

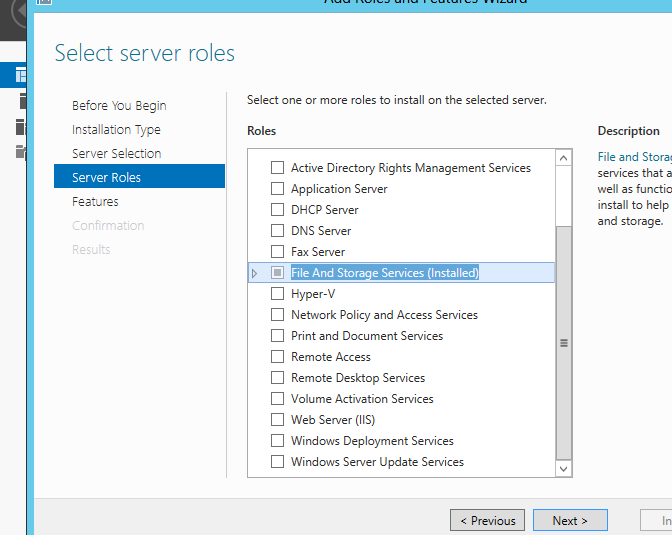

The procedure is as follows: From Server manager, add Roles and Features Wizard, under Server Roles, select File and Storage Services (Picture 1)

  Picture 1: File and storage Services

Then select the File Services check box, and then select the Data Deduplication (Picture 2)


Picture 2: Selection of Data Deduplication

next and install it (Picture 3).

Picture 3: Confirm installation selection


 In order to enable  data deduplication by using server manager, go to file and storage service right click in volume E: and configure deduplication (Picture 4)

  Picture 4: Right click in volume E: to configure


When the deduplication settings page appears click to enable data deduplication in days we type 0 in order to see immediate results and if we want to exclude some folders we click add (Picture 5).

Picture 5: Configure deduplication

Install deduplication from PowerShell

To install data deduplication from powershell we open PS and type as shown bellow (Pictures 6,7):

# C:\> Import-Module ServerManager

# C:\> Add-WindowsFeature -name FS-Data-Deduplication

# C:\> Import-Module Deduplication

 Picture 6: Install deduplication from PS


 Picture 7: Install Deduplication from PS


In order to enable from PS run the windows PS command in volume E: (Picture 8)

# C:\> Enable-DedupVolume E:

 Picture 8: Enable from PS

Moreover set the min number of days tha must pass before a file by using the following command: (Picture 9)

# C:\> Set-Dedupvolume E: -MinimumFileAgeDays 0


 Picture 9: Configure from PS
